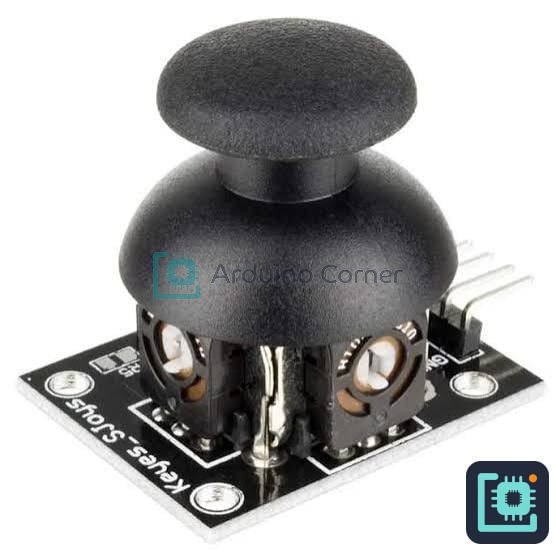

The KY-023 Dual-Axis Joystick Module is a PS2-style analog thumb joystick that lets you add smooth, two-dimensional control to any Arduino project. It contains two potentiometers for the X and Y axes plus a built-in pushbutton that activates when you press the stick down, making it perfect for robots, games and camera gimbals.
Key Features
- Two-axis analog output (X and Y) via built-in potentiometers
- Integrated pushbutton (SW) for select/fire actions
- Simple 5-pin interface reads directly on Arduino analog pins
- Self-centering spring return for precise control
- Works with Arduino, ESP32, ESP8266 and Raspberry Pi
Specifications
| Operating voltage | 5V DC |
| Interface | 2 analog outputs (X, Y) + 1 digital button |
| Output range | 0–1023 per axis (10-bit ADC) |

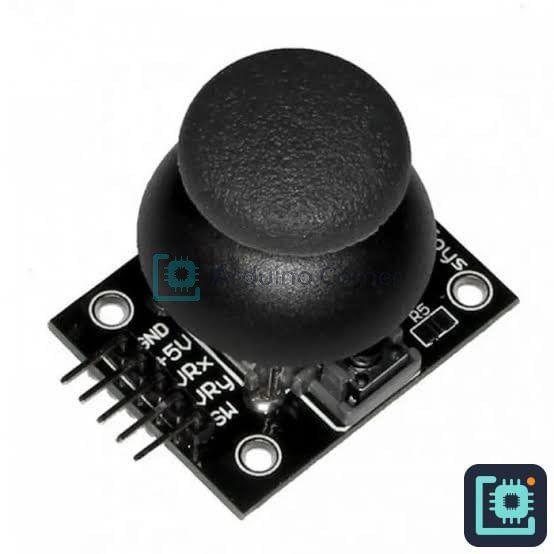

| Pins | GND, +5V, VRx, VRy, SW |
Popular Project Ideas
- Remote-controlled robot car and rover steering
- Pan-tilt servo camera and gimbal control
- Retro game controllers and menu navigation
In stock at Arduino Corner, Rawalpindi with quick delivery to Islamabad and all over Pakistan. Ideal for STEM students, robotics clubs and FYP teams — pay by cash on delivery or online.
