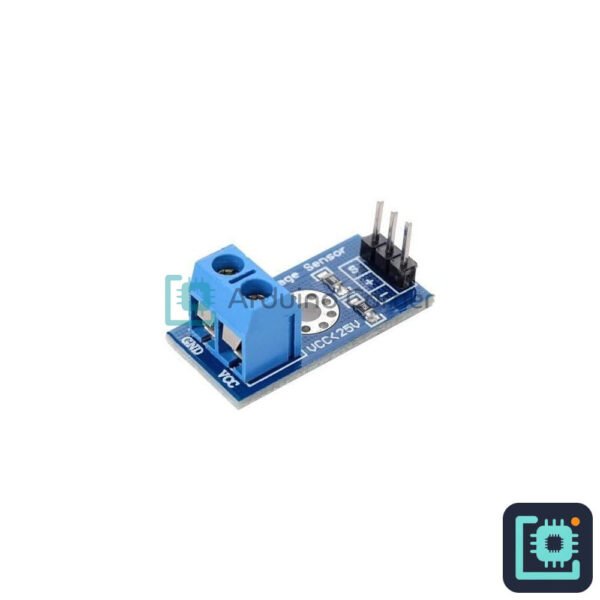

The Voltage Sensor Module (0-25V) uses a precision resistive voltage divider to scale a DC voltage down by a factor of 5, so your Arduino can safely read up to 25V on a single analog pin. It is the easiest way to monitor battery packs and power supplies.
Key Features
- Measures DC voltage from 0V up to 25V
- 5x resistive divider (30kΩ / 7.5kΩ) keeps the pin within safe range
- No external components — screw terminal in, analog out
- Works with Arduino, ESP32, ESP8266 and Raspberry Pi
- Compact board with mounting hole
Specifications
| Input range | 0V – 25V DC |
| Divider ratio | 5:1 (30kΩ & 7.5kΩ) |
| Interface | Analog output |
| Min. resolution (5V ADC) | ~0.024V per step |
| Terminal | 2-pin screw connector |
Popular Project Ideas
- Battery voltage monitor and low-battery alarm
- Solar panel and charge-controller logger
- Power-supply and bench-meter display
- IoT energy-monitoring dashboard
In stock at Arduino Corner, Rawalpindi with quick delivery to Islamabad and all over Pakistan. Ideal for STEM students, robotics clubs and FYP teams — pay by cash on delivery or online.
